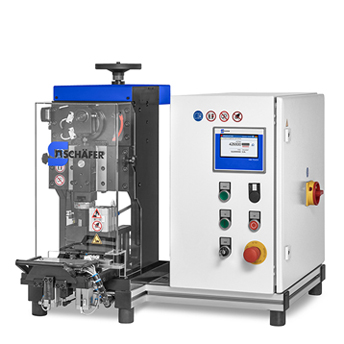

Crimping of individual wires with various options
Products
The Schäfer Group specializes in the development and manufacture of tooling as well as standard and special machines configured as bench-top machine, semi automatic machine and fully automatic machine especially for crimping, cutting and stripping in the wire processing industry. The company’s product range is complemented by quality control products as well as mold and die tooling.
High-performance Wire Processing Machines
Crimping Machine ProLine 240 ADVANCED
Crimping of individual wires with functions for quality assurance
Crimping Machine EPS 2001 with Quality System SQS06
Crimping and stripping of individual wires with extended functions for quality assurance
Automation System for Solar Applications
Fully automatic production of electric components for solar applications
Crimping Machine EPS 2001 with Ferrite Assembly
Bending of terminals, assembling with ferrite cores and crimping on two wires
Crimping Machine EPS 2001 for Airbag Connectors
Crimping of two wires or two-core cables with Airbag connectors
Crimping Machine EPS 2002 with Stripper 517
Crimping of wires with small cross-sections and short stripping lengths
Crimping Machine EPS 2000 with Sliding Tray
Production of cables with tubular lugs in electromobility
Crimping Machine EPS 3000 with Quality System SQS04V
Crimping of individual wires with functions for quality assurance
Crimping Machine EPS 15000 for H/Y-Connectors
Production of H- and Y-connectors for HPS40 systems in electromobility
Seal-Crimp Machine SSC2
Sealing and crimping of two single wires or two-core cables in one machine cycle
Seal-Crimp Machine SSC3
Sealing and crimping of three single wires or three-core cables in one machine cycle
Crimping Machine EPS 2002 SCM
The modern machine concept with various functions for quality assurance
Crimping Machine Megomat 600
Fully automatic processing of wires with cross sections of 0.08 – 6 mm² for the automotive industry
Crimping Machine Megomat 1000
Fully automatic processing of wires with cross sections of 0.08 – 8 mm² for special applications
Crimping Machine for Power Plugs (PCC-Pro)
Semiautomatic connecting of multi-core wires with plugs for production of power cables
Crimping Machine CrimpLine 1050 LC EXTENDED
Crimping of individual wires with a modern safety concept
Automation System for Medicine Applications
Fully automated production of cables for medicine applications
Automation System for Light Wave Cables (POF)
Fully automatic processing of polymer optical fiber cables (POF)
Stripping and Twisting Machine ST730
Stripping of single wires and coaxial cables with small cross sections
Crimping Applicators for Cable Productions
SolidCrimp ML-6
Mechanical crimping with side feed for small cross-sections and maximum precision in cable production
AirCrimp PL-6
Pneumatical applicator with side feed for small cross-sections and maximum precision in cable production
AirCrimp PL-6-WD
Pneumatical applicator with side feed for crimping individual terminals to wires with small cross sections
AirCrimp PL-16
Pneumatical applicator with side feed for crimping individual terminals to wires with bigger cross sections
AirCrimp PL-25
Pneumatical applicator with side feed for crimping individual terminals to wires with bigger cross sections
SolidCrimp MB-6
Mechanical applicator with back feed for crimping individual terminals to wires with small cross sections
SolidCrimp MB-6-SP
Mechanical applicator with back feed for crimping DVB connectors to wires with small cross sections
AirCrimp PB-6-WD
Pneumatical applicator with back feed for crimping individual terminals to wires with small cross sections
Quality Equipment for Wire Processing
Crimp Quality Sensor SDS100
Precise and direct recording of measured values for monitoring crimp quality
