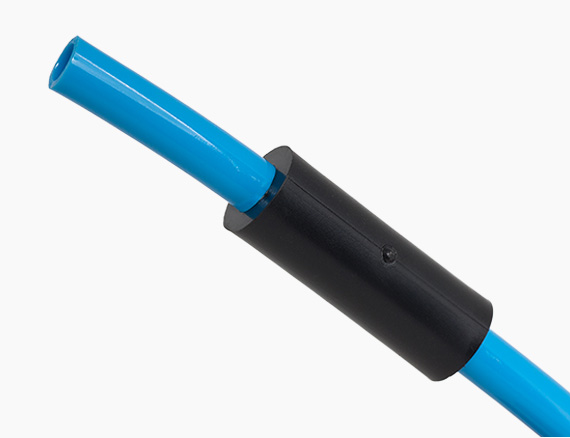

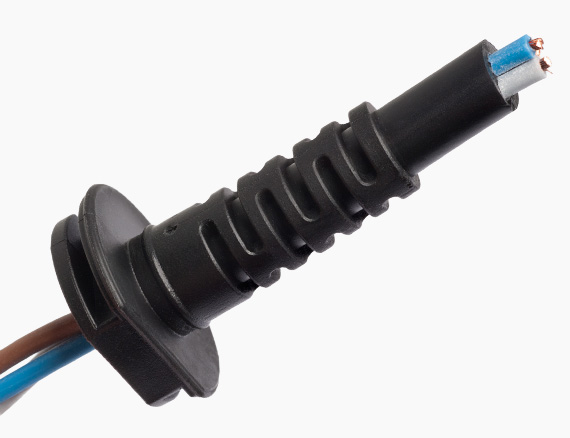

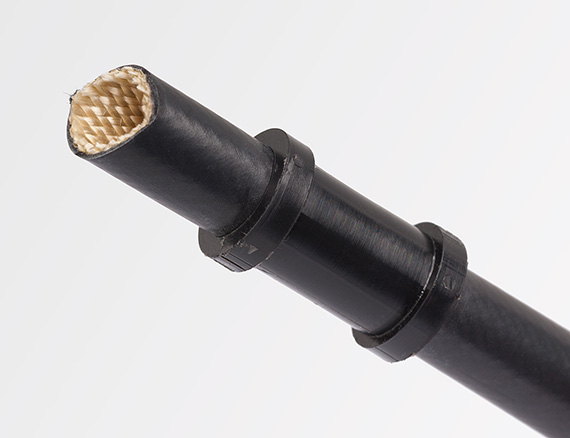

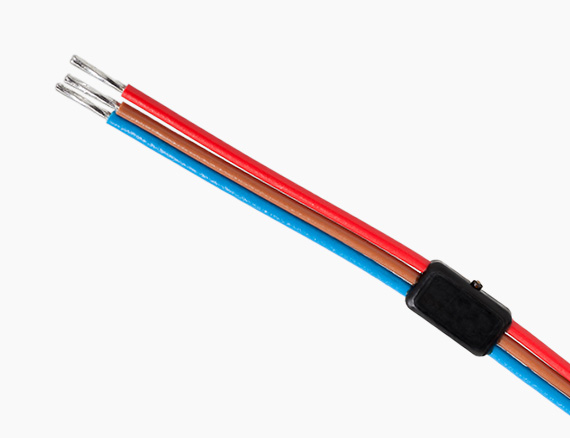

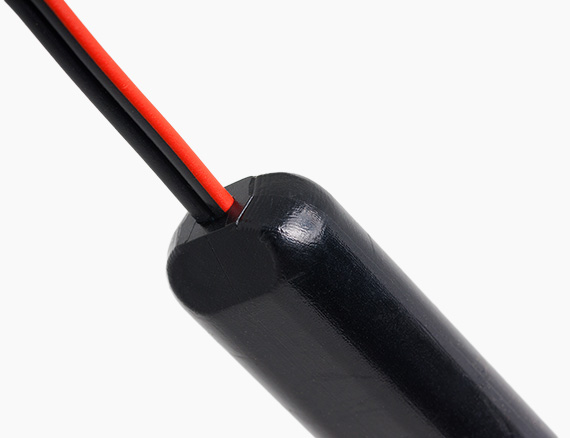

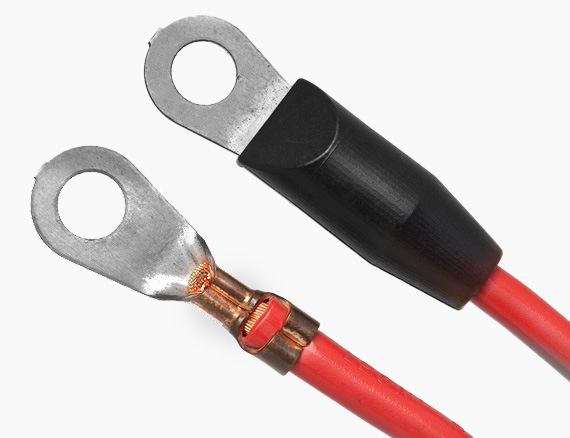

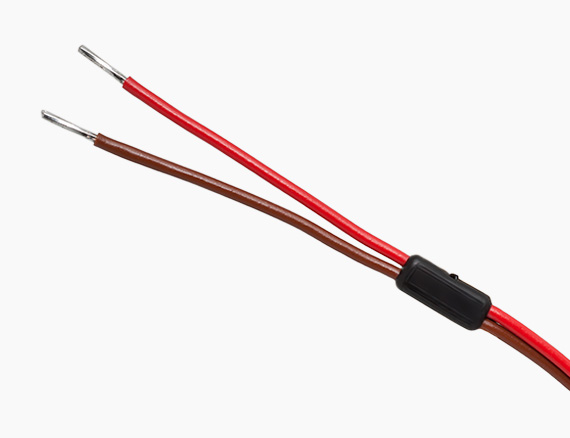

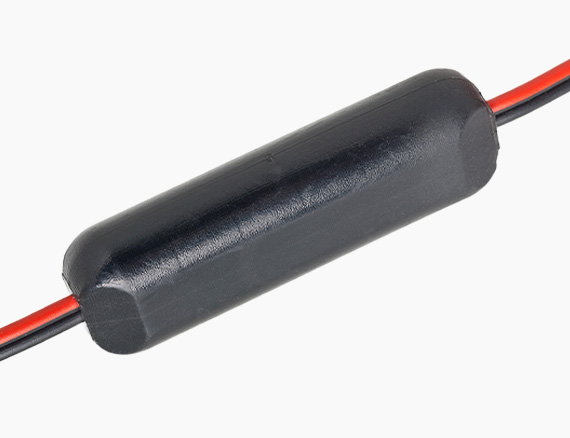

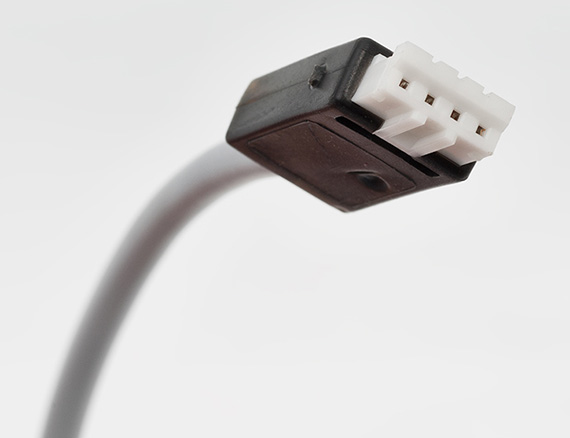

The device from Schäfer is suitable for the molding of hotmelt polyamides on technical components. This provides insulation and mechanical protection for specific assemblies, allowing them to withstand extreme conditions such as heat, dust, or moisture.
Diverse Applications
The MoldLine 205 BASIC consists of a control unit with a melting tank and a molding dispenser for the quick provision of molten hotmelt material. The molding device enables a wide range of applications — from free molding, known as “potting,” in housings to the precise filling of small tool molds.
Premium Hotmelt Materials
Our high-quality hotmelt adhesives are ideal for technological applications and offer a variety of advantages. They provide rapid curing, enabling efficient production. Additionally, they are versatile and can be applied to various surfaces. Their strong adhesion ensures high durability, while their high temperature resistance guarantees reliable connections in demanding conditions.
Advantages of the Hotmelt Dispenser
The MoldLine 205 BASIC offers:
- Stepless temperature adjustment for flexible adaptation
- High-performance components for short heating times
- Temperature setting via LED display
- Molding pressure adjustment via manometer
- Compact design for easy handling
With the hotmelt molding device, Schäfer provides a cost-effective solution suitable for the production of prototypes as well as small batch sizes.
Brochure (PDF)
Product description
Illustrations of the product are exemplary and may show options as well as specific equipment.
Standard Equipment
- Molding dispenser
- Control unit with melting tank
- Temperature control
- Holder for the molding dispenser
- Pressure regulator with manometer
Technical Data
| Power |
350 W |
| Display | LED |
| Temperature control | Electronic via controller |
| Molding pressure | 1.5 – 5.0 bar |
| Air consumption at 5 bar | Approximately 0.1 liters per casting (depending on the application) |
| Feeding system | Compressed Air |
| Casting temperature | 50 – 250 °C ± 1°C (continuously adjustable) |
| Tank volume | 200 ml |
| Power supply | 220-230 V, 50 Hz |
| Compressed air | 7 bar, dry and oil-free |
| Dimensions (W x D x H) | 200 x 720 x 460 mm |
| Weight | Handheld Device: 1.6 kg Supply Unit: 7.2 kg |
